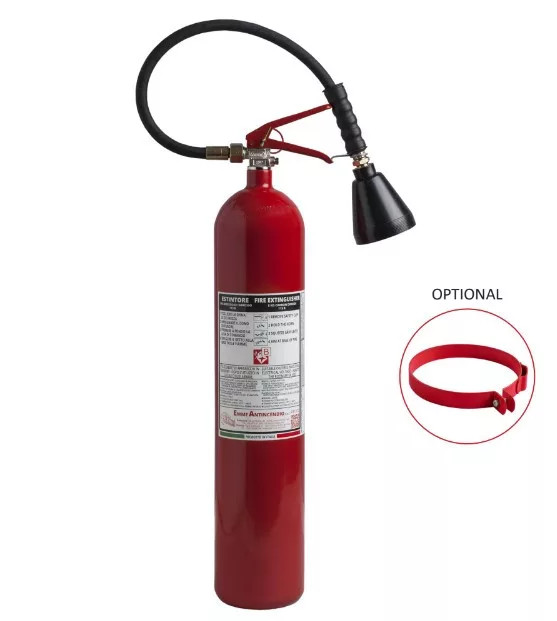

Fire extinguisher Bavaria Sigma 5 kg CO2
5Kg Carbon Dioxide Co2 fire extinguisher, temperature range from -30°C to +60°C, manufactured in accordance to EN 3-7, approved to European Marine Directive MED 2014/90/EU, certified according to the directive for pressure equipment PED 2014/68/EU. Manufactured according at productions checks as agreed with EN 3-10.
Approved/ Certified by:

Fire Class: 113 B

- 5Kg Carbon Dioxide Co2 fire extinguisher, temperature range from -30°C to +60°C, manufactured in accordance to EN 3-7, approved to European Marine Directive MED 2014/90/EU, certified according to the directive for pressure equipment PED 2014/68/EU. Manufactured according at productions checks as agreed with EN 3-10.
- Quality Product certification guaranteed by Bureau Veritas Italia.
- Suitable for use on fire involving electrical voltages up to 1.000 V, at a distance of 1 meter.
Characteristics:
- CYLINDER Alloy steel, epoxypolyestere powder painting, Red Ral 3000.
- EXTINGUISHING AGENT Carbon Dioxide 99,99% (CO2) .
- VALVE CPF M. 25x2, brass body, lever red RAL 3000.
- USE Fire Rating class B (flammable liquids).
Technical Specifications:
- FIRE RATING 113 B
- EXTINGUISHING AGENT Carbon Dioxide 99,99 % (CO2)
- TEMPERATURE RANGE -30°C/ +60°C
- NOMINAL CHARGE 5 Kg
- FULL WEIGHT ~ 13,8 Kg
- DIMENSIONS Height (base - valve) 750 +/- 10 mm - Diameter (cylinder) 136 +/- 2 mm
- DISCHARGE TIME ~ 15,6 seconds
