Fire Rating: 34 B

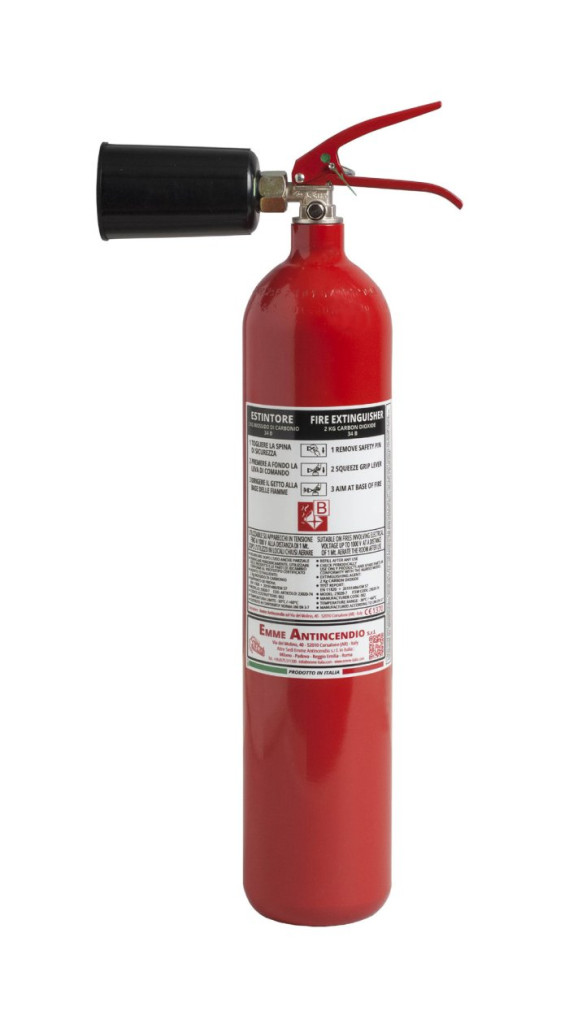

- 2 Kg CO2 - Carbon Dioxide Fire Extinguisher, operating temperature from -30° C to + 60° C, built in accordance with the standard UNI EN 3-7 (D.M. 7.1.2005), approved by Marine Equipment Directive MED 2014/90/UE, certified according to Pressure Equipment Directive PED 2014/68/EU.
- Quality Product certification guaranteed by Bureau Veritas Italia.
- Suitable for use on fire involving electrical voltages up to 1000 V, at a distance of 1 meter.
- Cylinder: Alloy steel, external powder coating, color Red Ral 3000.
- Extinguishing Agent: Carbon Dioxide 99,99% (CO2)
- Valve: Levian M. 25x2, brass body, lever red RAL 3000.
- Use: Fire Rating class B (flammable liquids)
TECHNICAL SPECIFICATIONS:
- Fire Rating: 34 B
- Extinguishing Agent: Carbon Dioxide 99,99 % (CO2)
- Temperature Range: -30°C / +60°C
- Nominal Charge: 2 Kg
- Full Weight: ~ 6,35 Kg
- Dimensions: Height (base-valve) 555 mm +/- 10 mm - Diameter 104 mm +/- 2 mm
- Discharge Time: 6,7 sec.
- Valve Tightening Torque: Minimum 60 Nm, Maximum 75 Nm
- Cylinder Pressure Test: PT 250 bar
- Cylinder Volume: 3 L.
- Safety Valve: Between 186 and 212 Bar
- Cylinder Material: Alloy steel
- External/Internal Treatment: Sandblasting and powder coating Red Ral 3000
